PFS-200 Impulse Heat Sealer – 8 Inch

Availability:

In Stock

Price:

15.00$

Wholesale Price:

Quantity	Unit Price
2+	14.00$
5+	13.00$
10+	12.00$

Total Cost:

15.00$

0 Reviews / Write a review

Write / Call us

Share with your friends

Description
Reviews (0)

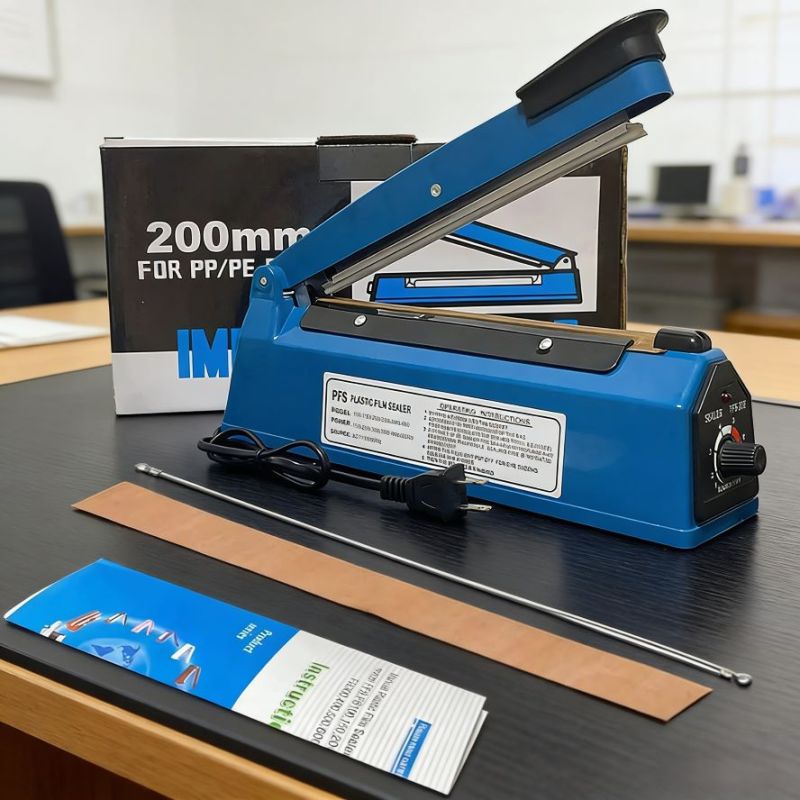

PFS-200 Impulse Heat Sealer – 8 Inch Plastic Bag Sealing Machine

PFS-200 Impulse Heat Sealer — Product Description

The PFS-200 Impulse Heat Sealer – 8 Inch Plastic Bag Sealing Machine is a practical and easy-to-use solution for sealing plastic bags and packaging materials. It works by applying a short burst of heat to thermoplastic films such as polyethylene (PE) and polypropylene (PP), creating a strong and airtight seal.

This impulse sealing technology only heats during the sealing process, which helps reduce energy consumption and improve safety compared to continuous heat sealers. The simple timer control allows users to quickly adjust the heating duration to match different bag thicknesses.

Thanks to its compact design and dependable performance, the PFS-200 is widely used in food packaging, retail packaging, small manufacturing operations, and home-based businesses. It is also commonly used for sealing Mylar bags for cannabis edibles, snacks, powders, and other packaged products.

Whether you need to seal food items, packaging materials, or storage bags, the PFS-200 Impulse Heat Sealer delivers fast, consistent, and professional sealing results, helping keep your products fresh and securely packaged.

PFS-200 Impulse Heat Sealer — Specifications

Model: PFS-200
Sealing Type: Impulse Heat Sealing
Power: 300W

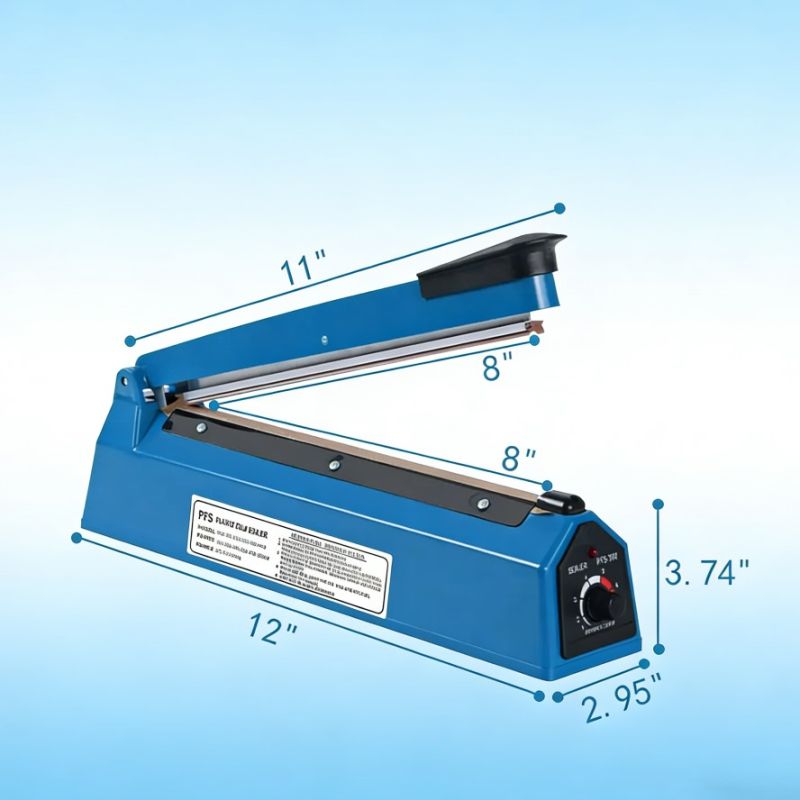

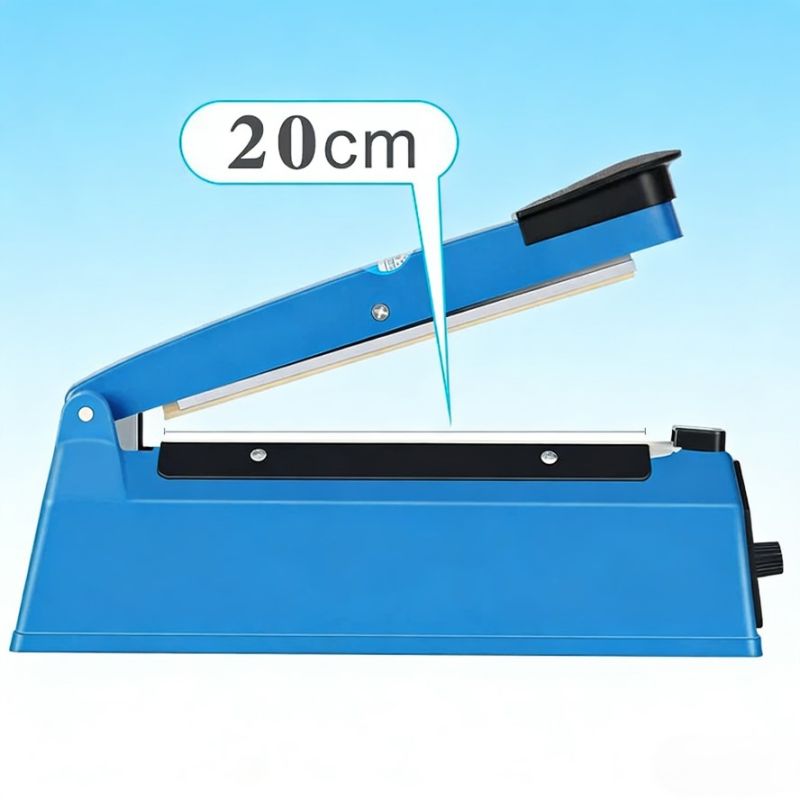

Maximum Seal Length: 200 mm (8 inches)
Maximum Seal Thickness: 0.3 mm
Seal Width: 2 mm
Heating Time Range: 0.2 – 1.5 seconds (adjustable)
Compatible Materials: PE, PP, Mylar, and other thermoplastic bags
Net Weight: Approximately 1.4 kg
Application: Plastic bag sealing for food, packaging, and small business use

How to Operate the PFS-200 Impulse Heat Sealer

Step 1: Power Connection and Initial Setup

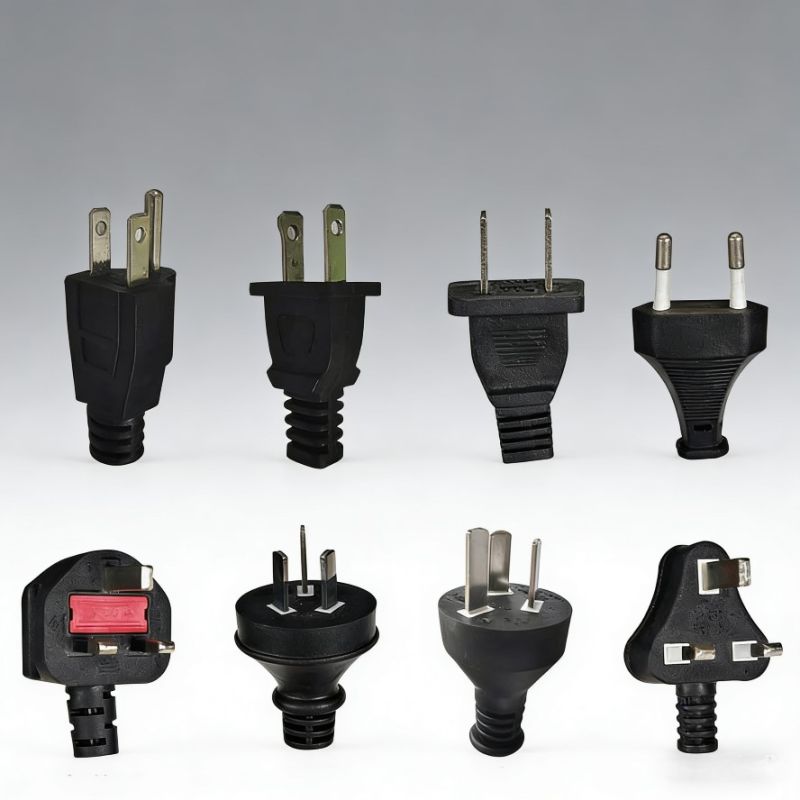

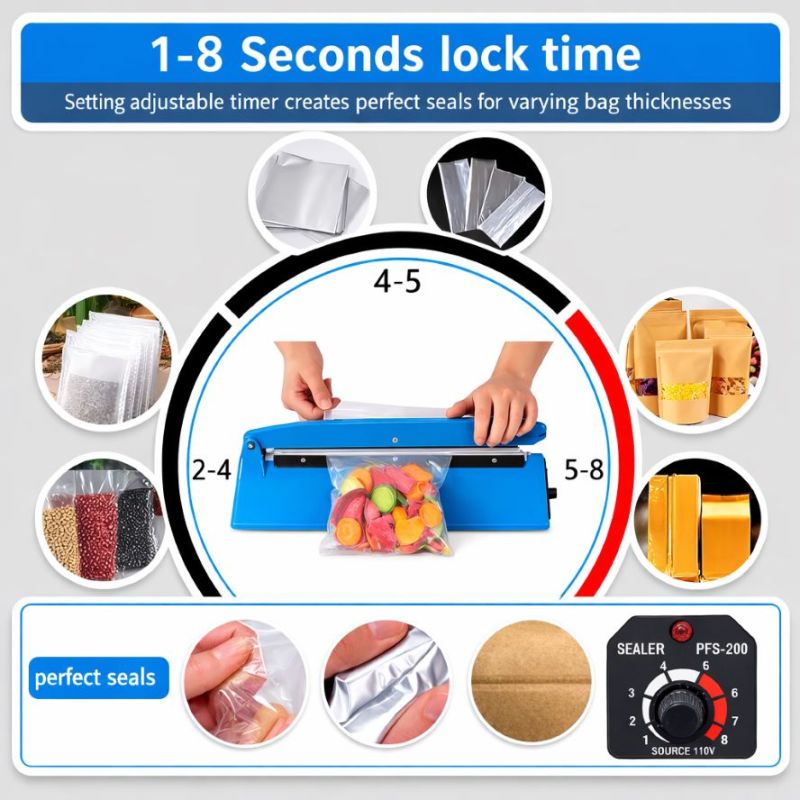

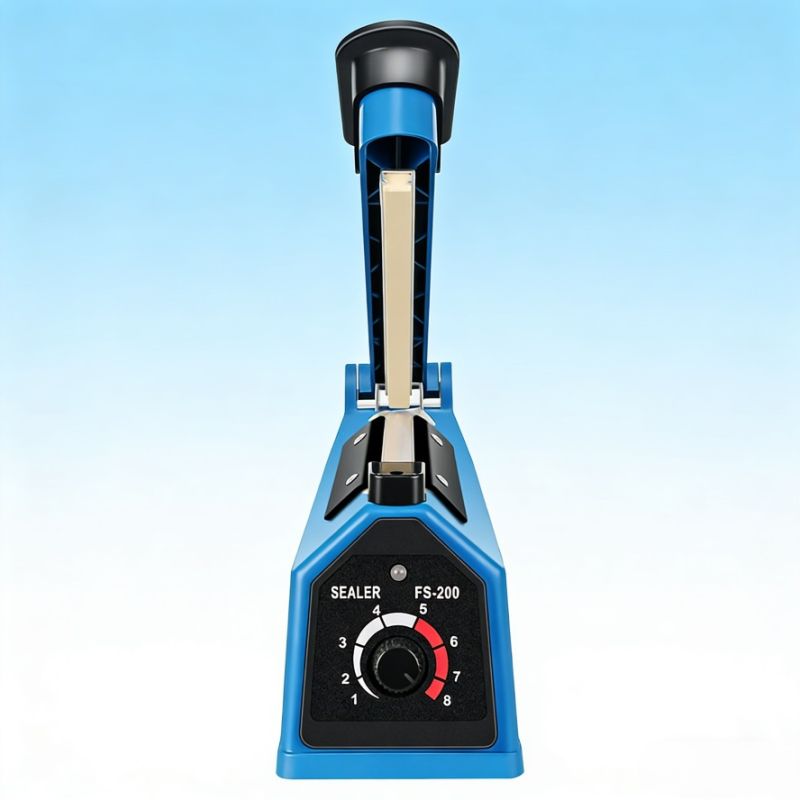

Begin by plugging the AC cord into a standard 100V–200V outlet, noting that the device does not feature a traditional power switch. You must then adjust the analog timer dial to set the heating duration, selecting a higher number for thicker materials and a lower number for thinner films.

Step 2: Positioning the Packaging Material

Lay your plastic bag or Mylar pouch flat across the 8-inch sealing platform, ensuring there are no wrinkles or debris in the sealing area. Align the edges carefully to ensure a straight, professional 2mm wide seal that maintains the airtight integrity of the package.

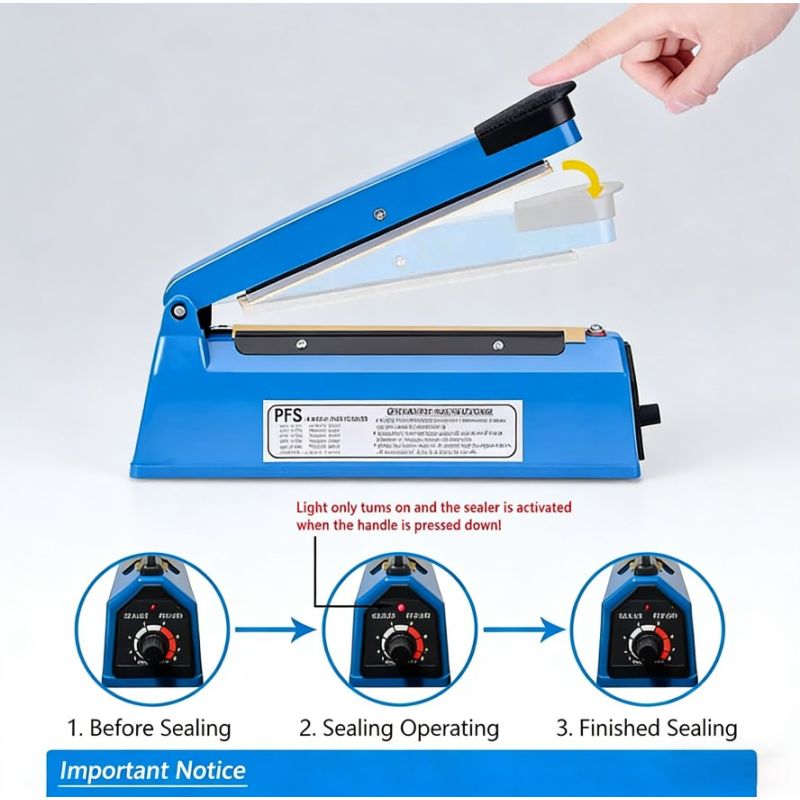

Step 3: Activating the Impulse Heat Cycle

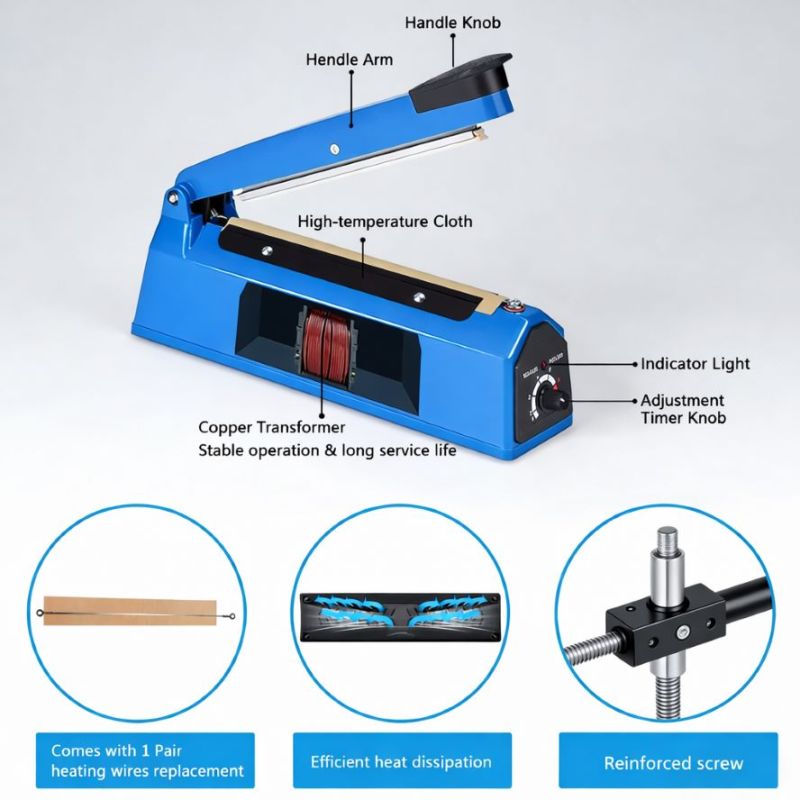

Firmly press the handle down to engage the internal electronic circuit, which will automatically trigger the heating element for your pre-set duration. Watch the indicator light on the chassis; it will illuminate during the active heating phase and turn off once the power is automatically cut.

Step 4: Cooling and Seal Solidification

After the light turns off, continue to hold the handle down for an additional 1–2 seconds to allow the molten plastic to cool and solidify. This crucial cooling period prevents the bag from sticking to the rubber and ensures the strongest possible bond before the pressure is released.

Step 5: Inspection and Final Adjustments

Release the handle and inspect the finished seam for any breaks or signs of overheating, such as melting through the material. If the seal is weak, slightly increase the heat time; if the material is damaged, decrease the duration until you achieve consistent, reliable results.

Step 6: Specialized Model Features (PFS-200B)

If you are utilizing the PFS-200B model, be aware that it includes a built-in function to print identification numbers directly onto the seal. To disable this feature if it is not required for your specific batch, simply flip the handle's silicone rubber strip over to avoid creating unintentional imprints.

By following these steps, the PFS-200 Impulse Heat Sealer can provide fast, reliable, and professional sealing results for food packaging, storage bags, and many other plastic materials.

How to Order the PFS-200 Impulse Heat Sealer

1. Send Your Requirements
Contact us with the quantity, specifications, and any special requirements such as packaging or branding for the PFS-200 Impulse Heat Sealer.

2. Receive a Quotation
Our sales team will provide a detailed quote with factory-direct pricing, including MOQ, lead time, and shipping options.

3. Confirm Order Details
Review and confirm the product specifications, packaging, labeling, and logistics arrangements before finalizing the order.

4. Proforma Invoice & Payment
Once everything is confirmed, we will issue a Proforma Invoice (PI). Complete the payment according to the agreed terms to proceed.

5. Production and Shipment
After payment, production will begin. All units undergo strict quality inspection before shipment, and tracking details will be provided once the order is dispatched.

PFS-200 FAQ

1. What materials can the PFS-200 Impulse Heat Sealer seal?

The PFS-200 Impulse Heat Sealer – 8 Inch is designed for sealing thermoplastic materials such as polyethylene (PE), polypropylene (PP), and Mylar bags. It is commonly used for food packaging, storage bags, retail packaging, and small business applications that require airtight plastic bag sealing.

2. How do I choose the correct heat setting for the PFS-200 heat sealer?

The heating time should be adjusted based on the thickness and type of plastic material. Thinner bags require a lower heat setting, while thicker materials need slightly longer heating times. It is recommended to start with a low setting and gradually increase until a clean and strong seal is achieved.

3. What is the maximum sealing size of the PFS-200 Impulse Heat Sealer?

The PFS-200 offers a maximum sealing length of 200 mm (8 inches) and can seal materials with a thickness of up to 0.3 mm. The machine produces a 2 mm wide sealing line, ensuring a tight and durable seal for most plastic bags and pouches.

4. Where can I buy the PFS-200 Impulse Heat Sealer online?

You can explore product details and purchase options for the PFS-200 Impulse Heat Sealer – 8 Inch Plastic Bag Sealing Machine on the Vappex website, where various packaging and sealing equipment are available.

5. How can I contact the Vappex team for product inquiries or bulk orders?

If you need more information about the PFS-200 heat sealer or want to place a bulk order, you can contact the Vappex team directly through the Vappex website. Their support team can provide product recommendations, pricing details, and shipping information.

Related Products

Cookies 1lb Big Die Cut Mylar Bags Wholesale

Cookies 1lb Big Die Cut Mylar Bags WholesaleProduct Specifications:1. Material:Crafted from premium food-grade holographic PET film for superior strength and visual appeal. Optional lamination with PE or AL adds extra durability, odor control, and moisture resistance to protect your cannabis products.2. Size:Standard dimensions are 33.0 cm × 29.7 cm, ideal for large-capacity packaging. Fully customizable sizing is available to match your specific branding or storage needs.3. Capacity:Designed to hold 1 pound (1lb) of cannabis flower or equivalent weight in edibles, cookies, gummies, or tobacco. Perfect for bulk storage or retail display.4. Sealing Method:Available in heat-seal for tamper-proof protection or resealable zipper for convenient reuse. Optional child-resistant zipper ensures extra safety compliance.5. Applications:Suitable for cannabis flower, THC/CBD edibles, cookies, brownies, gummies, herbs, spices, candy, and other specialty products requiring odor and moisture control.6. MOQ:Minimum order starts at 500 pieces for standard bags. Custom designs are available from 5,000 pieces, and trial orders are welcome for sampling.7. Customization:Supports private label branding, custom die-cut shapes, logos, patterns, and sizes. Enhance your product presentation with personalized packaging that reflects your brand identity.Packaging Description:Our Cookies 1lb Die-Cut Mylar Bags (Wholesale) are crafted for dispensaries, retailers, and cannabis brands that want packaging with both impact and performance. Designed to be odor-proof, moisture-resistant, and resealable, these premium Mylar bags ensure long-lasting product freshness and protection.Each bag is made from high-barrier holographic PET material, offering superior durability and a vibrant, eye-catching appearance. The unique Cookies-inspired die-cut shape enhances shelf appeal and gives your brand a distinctive, professional look.With customization options such as logo printing, surface finishes, and optional child-resistant zippers, these bags can be tailored to fit your brand identity and compliance needs.Perfect for cannabis flower, THC/CBD edibles, cookies, tobacco, and candies, our Cookies 1lb Mylar Bags combine functionality, safety, and style — a packaging solution that helps your products stand out while maintaining freshness and quality.Packaging Description:The Die-cut "Cookies" Bag1. Shape and Design: This is a die-cut shaped bag, cut precisely along the contour of a cartoon character. The character is a jar or container wearing a blue bucket hat and blue sneakers (resembling Nike Air Jordan 1s), with a large gold chain around its neck featuring a big "C" pendant.2. Main Features: The jar is blue and printed with the white text "Cookies" (likely parodying the popular Cookies cannabis brand). The jar lid is open, revealing green contents inside (typically representing cannabis flower).3. Action/Pose: It has two hands wearing white cartoon gloves; one hand (left) is holding a small nug of green cannabis flower, and the other hand (right) is giving a thumbs-up.4. Dimensions: The image includes dimension markings: 340mm in height and 295mm in width, indicating a relatively large packaging size.5. Labeling: On the right sneaker, there is the standard cannabis industry warning triangle icon and "CA" (likely referring to California regulations).6. Material: This is a large mylar bag typically used for visual appeal or wholesale packaging.Die-cut "Cookie" Logo Bags1. Style: Die-cut bags shaped like a melted, bitten cookie or the letter "C" logo.2. Design Examples: Two bags, one blue and one orange (or brown), featuring a white letter "C" with a melted/dripping edge.3. Capacity: These die-cut bags are typically used for 1lb or large-capacity packaging.4. Features: Highly recognizable visual branding, mimicking the logo of the well-known cannabis brand Cookies.In addition to high-quality mylar bags, we also manufacture empty vape devices designed for oil and concentrate products. These devices are suitable for private label brands and wholesale distributors.

From: 0.22$ / piece

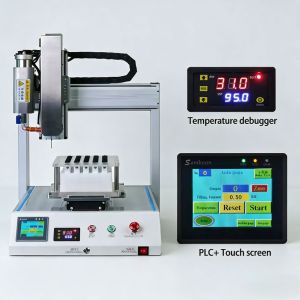

Automatic Vape Cartridge Oil Filling Machine for Distillate

Automatic Vape Cartridge Oil Filling Machine for DistillateThe Automatic Vape Cartridge Oil Filling Machine for Distillate is a high-precision, industrial-grade solution tailored for manufacturers seeking to scale production with reliability and consistency. Engineered specifically for high-viscosity formulations—including CBD oil, THC distillate, cannabis extracts, and nicotine liquids—this machine eliminates the bottlenecks of manual filling while ensuring professional-grade accuracy for every unit.By integrating fully automatic operation with a specialized vacuum filling system and high-torque servo motors, the machine delivers a stable, high-performance workflow. It is the definitive choice for production lines aiming to reduce manual labor costs, minimize oil waste, and maintain a competitive edge in product quality.High-Efficiency Precision Filling SystemThis system is built for speed and precision, featuring a 300ml integrated oil reservoir and a single high-performance filling head. It is capable of processing 10–30 units per minute, making it a versatile powerhouse for various production scales. Advanced Vacuum Technology: Utilizes an infusion pump combined with vacuum-assisted filling to handle even the thickest distillates without clogging or air bubbles. Superior Accuracy: Maintains a strict filling tolerance of only ±1%, ensuring consistent dosing and regulatory compliance. Versatile Volume Range: Offers an adjustable filling capacity from 0.2ml to 2ml, allowing seamless switching between 510-thread cartridges, pods, and disposable vape devices. Scalable Performance: Whether you are managing boutique small-batch runs or high-volume commercial manufacturing, this machine provides the uniform results your brand demands.Smart Control & Easy OperationOperation is simplified through an intuitive 3.5-inch touch screen interface integrated with PLC control and automatic programming. Operators can easily adjust filling parameters, monitor production status, and optimize performance with minimal training.The servo-motor driven ball screw actuator ensures smooth movement and accurate positioning, resulting in stable operation and long-term reliability.Durable Construction & Flexible Power OptionsThe machine is built with industrial-grade components to ensure long-lasting performance in demanding production environments. It supports dual power supply options (AC100-120V or AC200-240V), making it adaptable to international manufacturing facilities.Despite its powerful functionality, the unit maintains a compact footprint, allowing easy installation in laboratories, workshops, and small to medium production lines.Machine SpecificationsModel Number: VP-211A Applicable Liquids: CBD oil, THC distillate, nicotine oil, cannabis extracts, and other liquids Operation Type: Fully Automatic Oil Tank Capacity: 300 ml Filling Heads: 1 Production Speed: 10 – 30 cartridges per minute Filling Range: 0.2 ml – 2 ml Filling Accuracy: ±1% Working Principle: Infusion Pump Filling Method: Vacuum Filling Control System: Touch Screen + PLC + Automatic Programming Drive System: Ball Screw Actuator with Servo Motor Power Supply: AC100-120V or AC200-240V (optional) Power Consumption: 500 W Screen Size: 3.5 inchMachine Dimensions: 520 × 640 × 650 mm Net Weight: 46 kgShipping Package: Wooden crate Carton Size: 570 × 700 × 795 mm Gross Weight: 68 kgWarranty: 1 YearAlternative Option for Smaller BudgetsFor businesses seeking a more economical solution, a semi-automatic disposable vape pen filling machine is also available. This model provides reliable filling performance while requiring more manual operation, making it suitable for smaller production runs or startups with limited budgets.Although semi-automatic, the machine still delivers accurate filling and improved efficiency, helping manufacturers scale their production while controlling costs.Improve Your Vape Production EfficiencyThe Automatic Vape Cartridge Filling Machine is designed to help vape manufacturers improve productivity, maintain filling accuracy, and simplify the cartridge filling process. With advanced automation, durable construction, and user-friendly controls, it provides a dependable solution for modern vape production lines.How to Order the Filling MachineContact our team and let us know the machine model you need and the estimated order quantity. Receive our latest quotation, including pricing, lead time, and basic order details. Confirm the specifications and shipping arrangements based on your production requirements. A Proforma Invoice (PI) will be issued for your order confirmation. Complete the payment according to the agreed terms. Production begins, followed by strict quality inspection and timely shipment.Frequently Asked Questions (FAQ)1. What types of oil can this filling machine handle?This automatic vape cartridge filling machine is compatible with a wide range of liquids, including CBD oil, THC oil, nicotine e-liquid, cannabis distillate, and other similar formulations.2. What is the filling speed of the machine?The machine can fill approximately 10–30 cartridges per minute, depending on the oil viscosity and the selected filling volume.3. What filling volume range does the machine support?The filling capacity ranges from 0.2 ml to 2 ml, making it suitable for most standard vape cartridges and disposable vape devices.4. Is the machine easy to operate for beginners?Yes. The machine features a touchscreen control system with PLC programming, allowing operators to easily set parameters and monitor the filling process with minimal training.5. What kind of maintenance does the machine require?Routine maintenance mainly includes cleaning the filling system, checking the pump and tubing, and ensuring the machine remains free of oil residue. Regular maintenance helps ensure consistent accuracy and long-term performance.6. Can I order this vape cartridge filling machine directly from the VAPPEX website?Yes. You can contact the sales team directly through the VAPPEX website to request product details, pricing, and ordering information. Our team will assist you with specifications, shipping options, and the complete purchasing process.7. Does VAPPEX provide technical support after purchasing the machine?Yes. When you purchase from the VAPPEX website, our team provides technical assistance, operation guidance, and a 1-year warranty to ensure the machine runs smoothly and reliably in your production line.

From: 4,288.00$ / piece

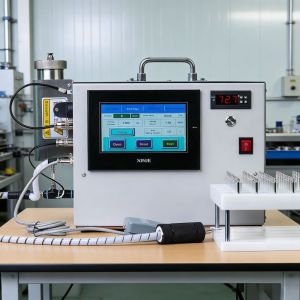

Semi-automatic Vape Filling Machine

Semi-automatic Vape Filling Machine for 510 Carts & DisposablesAutomatic Vape Filling Machine – Technical Specifications Model: VP-100R Automation Level: Semi-Automatic Compatible Liquids: CBD Oil, THC Oil, Nicotine E-Liquid, Cannabis Distillate, and other liquid formulationsFilling Performance Oil Tank Capacity: 300 ml Number of Filling Heads: 1 Filling Speed: 10 – 20 cartridges per minute Filling Volume Range: 0.5 ml – 5 ml (Optional: 0.2 ml – 2 ml) Filling Accuracy: ±1%Operating System Working Principle: Infusion Pump System Filling Principle: Vacuum Filling Technology Temperature Control: Integrated Heating Temperature Control System Control System: Touch Screen + PLC (Programmable Logic Controller) with Automatic Programming Drive Mechanism: Ball Screw Actuator with Servo MotorElectrical Specifications Power Supply (Optional): AC100V – 120V / AC200V – 240V Power Consumption: 200W Touch Screen Size: 7-inch DisplayMachine Dimensions & Packaging Machine Size: 240 × 380 × 300 mm Net Weight: 14 kg Packaging: Wooden Shipping Crate Carton Size: 350 × 490 × 365 mm Gross Weight: 21 kgWarranty Warranty Period: 1 Year Manufacturer WarrantySemi-Automatic Vape Filling Machine – Product OverviewVersatile Filling Solution for Vape Oils The VP-100R Semi-automatic Vape Filling Machine is designed for accurately filling CBD oil, THC oil, nicotine e-liquid, cannabis distillate, and other liquid formulations. It provides a reliable solution for manufacturers filling empty disposable vape pens and empty vape cartridges.Efficient Semi-Automatic Operation Combining automation with manual flexibility, the VP-100R allows operators to easily adjust settings while maintaining stable production performance. This makes it ideal for small-to-medium scale production lines that require precision and control.Stable Production Performance Equipped with a 300ml oil tank and a single filling head, the machine can fill approximately 10–20 devices per minute. The adjustable filling volume ensures compatibility with different cartridge sizes and disposable vape capacities.High Filling Accuracy The filling volume can be adjusted between 0.2ml and 2ml, with a tolerance of only ±1%, ensuring consistent oil levels and reliable product quality across every batch.Advanced Control System A touch screen interface combined with PLC programming makes the machine easy to operate and monitor. Operators can quickly adjust parameters, track the filling process, and optimize performance through the intuitive control panel.Reliable Mechanical Structure The VP-100R uses an infusion pump system and vacuum filling principle for stable and precise liquid delivery. A servo-motor-driven ball screw actuator ensures smooth motion and consistent filling results.Compact and Durable Design With a compact size of 240 × 380 × 300 mm and a net weight of 14 kg, the machine fits easily into most production spaces. The equipment is securely packed in a protective wooden shipping crate to ensure safe transportation.1-Year Warranty Support The VP-100R comes with a 1-year manufacturer warranty, offering peace of mind and dependable long-term operation for your vape cartridge filling process.Related Filling Machines1. G9 Cartridge Filling MachineFor businesses looking for a compact and economical solution, the G9 filling machine is ideal for small-batch production. It features temperature control and supports filling volumes between 0.5ml and 2.5ml.2. VP-211A Fully Automatic Filling MachineFor large-scale production, Vappex also offers the VP-211A fully automatic filling machine, designed for high-volume cartridge filling with minimal manual operation.Bulk Ordering Process Send your model selection and quantity – Let us know which models you need and the quantity for each item. Receive pricing and lead time – We will provide updated wholesale pricing and estimated production lead time. Confirm order details – Once everything is confirmed, we will issue a Proforma Invoice (PI) for your order. Complete the payment – Proceed with the payment according to the details listed on the PI. Production and quality check – Your order enters production, goes through strict quality control (QC), and is prepared for shipment.Frequently Asked Questions (FAQ)1. What is a semi-automatic vape filling machine?It is a device that automates the oil injection process while the operator manually positions the cartridges. It combines the precision of a machine with the flexibility of manual control.2. What types of products can this machine fill?It is designed for 510 cartridges, disposable pens, and pods. It works with CBD, THC, nicotine, and various thick cannabis distillates.3. Semi-Automatic vs. Fully Automatic: What’s the difference?Semi-automatic machines require an operator to place or swap the hardware. Fully automatic systems, like the VP-211A available on the Vappex website, handle the entire process from feeding to capping for high-volume production.4. How accurate is the filling process?The VP-100R offers a high filling accuracy of ±1%. This ensures consistent quality across every unit and significantly reduces oil waste.5. How do I choose the right machine for my needs?Consider your production volume, oil viscosity, and budget. For small to medium scales, a semi-automatic machine is the most cost-effective start; you can explore all professional options on the Vappex website.6. Where can I buy a reliable filling machine?For factory-direct pricing on equipment for 510 carts or disposables, visit the Vappex website. Once you place an order, the Vappex team will reach out to you via the contact information provided, or you can proactively contact them to receive your order updates and shipping details.

From: 2,668.00$ / piece

G9 Precision Cart Filler – Semi Automatic Vape Filling Equipment

G9 Precision Cart Filler – Semi Automatic Vape Filling EquipmentG9 Cart Filler SpecificationsThe G9 Precision Cart Filler is a compact semi-automatic vape cartridge filling solution designed for accurate and efficient oil dispensing. It is ideal for filling CBD, THC, distillate, and other viscous vape oils. Barrel Capacity: 25ml Shot Size Adjustment: 0.5ml / 1.0ml / 1.5ml / 2.0ml / 2.5ml Temperature Control Range: Room Temperature – 190°F Heater Wattage: 35W Maximum Heater Load: 150W Input Voltage: 110V / 220V Fuse Rating: 2 AMP Power Cord Length: 5 ft Heat Cord Length (Controller to Gun): 3 ft Available Colors: Green, SilverPackage ContentsEach G9 Cart Filler kit includes all essential components needed for operation: 1 × G9 Cartridge Filling Gun 1 × Temperature Controller 1 × Heating Cord 1 × Power Cord 4 × Luer Lock Needles 1 × User Manual 1 × Protective Packaging BoxKey FeaturesAdjustable Filling Volume The filling gun supports adjustable shot sizes from 0.5ml to 2.5ml, allowing flexible filling for different cartridge sizes.Precision Luer Lock System Comes with 14 / 15 / 18 gauge Luer lock needles, ensuring compatibility with various cartridge filling requirements.Temperature-Controlled Heating Integrated temperature control with automatic cutoff at 190°F, helping maintain the ideal viscosity for thick oils.Durable Chemical-Resistant Barrel The polypropylene barrel is resistant to many solvents and compounds including isopropyl alcohol, ethanol, butane, glycerin, glycols, terpenes, hexane, and most acids.Adjustable Plunger Tension The plunger tension can be adjusted to improve control and ensure smooth and consistent dispensing.Extra Plunger Gasket Included An additional barrel plunger gasket is provided to extend service life and maintain reliable performance.Compact & Easy to Operate The G9 system features a lightweight and practical design, making it suitable for small production runs, lab testing, and boutique vape manufacturing.G9 Semi-Auto Cartridge FillerEfficient & Precise Oil Filling SolutionThe G9 Semi-Automatic Vape Cartridge Filling Machine (also known as the G9 Cart Filler) is a user-friendly device designed to make cartridge filling effortless. It is the ideal solution for cannabis businesses looking to increase productivity and streamline operations with a high-quality, reliable tool.Performance & Capacity High-Efficiency Injection: The machine features a 25ml filling gun capacity, making it one of the most efficient manual fillers available for small to medium-scale production. Precise Volume Control: Step increments range from 0.5ml to 2.5ml, giving you complete control over the exact amount of oil filled into each cartridge or disposable pen. Scalable Productivity: While perfect for maximizing small business efficiency, users requiring even higher performance can upgrade to our Disposable Vape Pen Filling Machine.Advanced Temperature Management Wide Heat Range: The integrated Enail temperature controller adjusts from room temperature up to 190°F, ensuring your oil maintains the optimal viscosity for smooth filling. Reliable Power Specs: The system operates on 110V/220V input with a 35W heater (150W max load), protected by a 2 AMP fuse for consistent and safe performance during long sessions. Safety First: A built-in temperature cutoff at 190°F prevents overheating, protecting the integrity and quality of your delicate oils and terpenes.Versatile & Durable Construction Universal Compatibility: Each kit includes 14, 15, and 18-gauge Luer Lock needles, ensuring the device is compatible with a wide variety of attachment sizes and hardware types. Industrial-Grade Materials: The polypropylene barrel is highly durable and chemically resistant to Isopropyl Alcohol, Ethanol, Terpenes, and most acids used in oil processing. Customizable Tension: An adjustable plunger tension feature allows you to customize the pressure, giving you a tactile and controlled filling experience for different oil thicknesses.User-Friendly Setup & Maintenance Plug-and-Play Design: The G9 is ready to use immediately out of the box; simply attach the default tips to start filling with zero complicated assembly required. Ergonomic Reach: Equipped with a 5ft power cord and a 3ft heat cord, the machine offers plenty of range to operate comfortably in any lab or workstation environment. Easy Cleaning: The device features removable parts that are easy to clean and maintain, ensuring a long lifespan and simple replacement of wear-and-tear components.FAQ1. What types of oil can the G9 Precision Cart Filler handle?The G9 Precision Cart Filler is designed for filling various vape oils such as CBD oil, THC oil, cannabis distillate, and other viscous concentrates. The built-in heating system helps maintain the correct viscosity for smooth and consistent filling.2. What filling volumes does the G9 cartridge filler support?The machine supports adjustable filling volumes in 0.5ml increments, including 0.5ml, 1.0ml, 1.5ml, 2.0ml, and 2.5ml. This makes it suitable for different cartridge sizes and disposable vape devices.3. Does the G9 cart filler include temperature control?Yes. The system includes a temperature controller with a heating range from room temperature up to 190°F. This helps keep thick oils warm and fluid, ensuring accurate and efficient cartridge filling.4. Is the G9 semi-automatic filling machine suitable for small production?Absolutely. The G9 is ideal for small to medium vape production, lab testing, and boutique cannabis brands. Its compact size, easy operation, and precise dosing make it a reliable solution for controlled filling processes.5. How to Use the G9 Precision Cart Filler | Semi Automatic Vape Cartridge Filling MachineThe G9 Precision Cart Filler is designed to make vape cartridge filling simple, accurate, and efficient. Follow these basic steps to achieve the best filling results.Step 1: Preheat the Oil Heat your oil to around 140°F (60°C) before filling. This reduces viscosity and allows the oil to flow smoothly into the barrel.Step 2: Set the Temperature Connect the power cord to the temperature controller and turn on the machine. Use the up and down buttons to set the desired temperature for your oil.Step 3: Prepare the Filling Barrel Remove the heating barrel from the filling gun by loosening the finger screw. Press the lock release button and pull back the plunger, then unscrew and remove the oil barrel.Step 4: Fill the Oil Barrel Attach the Luer lock cap to the barrel tip to prevent leaks, then pour the preheated oil into the barrel. Avoid overfilling.Step 5: Reassemble the Filling Gun Screw the filled oil barrel back onto the gun and replace the Luer lock cap with the Luer lock filling needle. Hold the tip upward and gently squeeze the trigger to remove any air bubbles.Step 6: Set the Filling Volume Adjust the dosage dial on the gun to select the desired filling amount (0.5ml – 2.5ml).Step 7: Fill the Cartridges Insert the needle into the cartridge and squeeze the trigger until it clicks. The cartridge will be filled with the preset oil volume.This simple process helps ensure consistent, clean, and accurate cartridge filling for CBD, THC, and other vape oils.

From: 135.00$ / piece

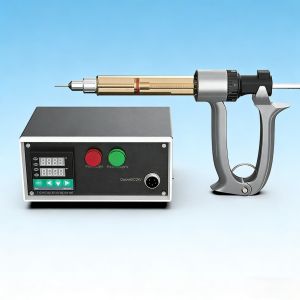

BBELL Lava Core Professional Thick Oil Filling Equipment
